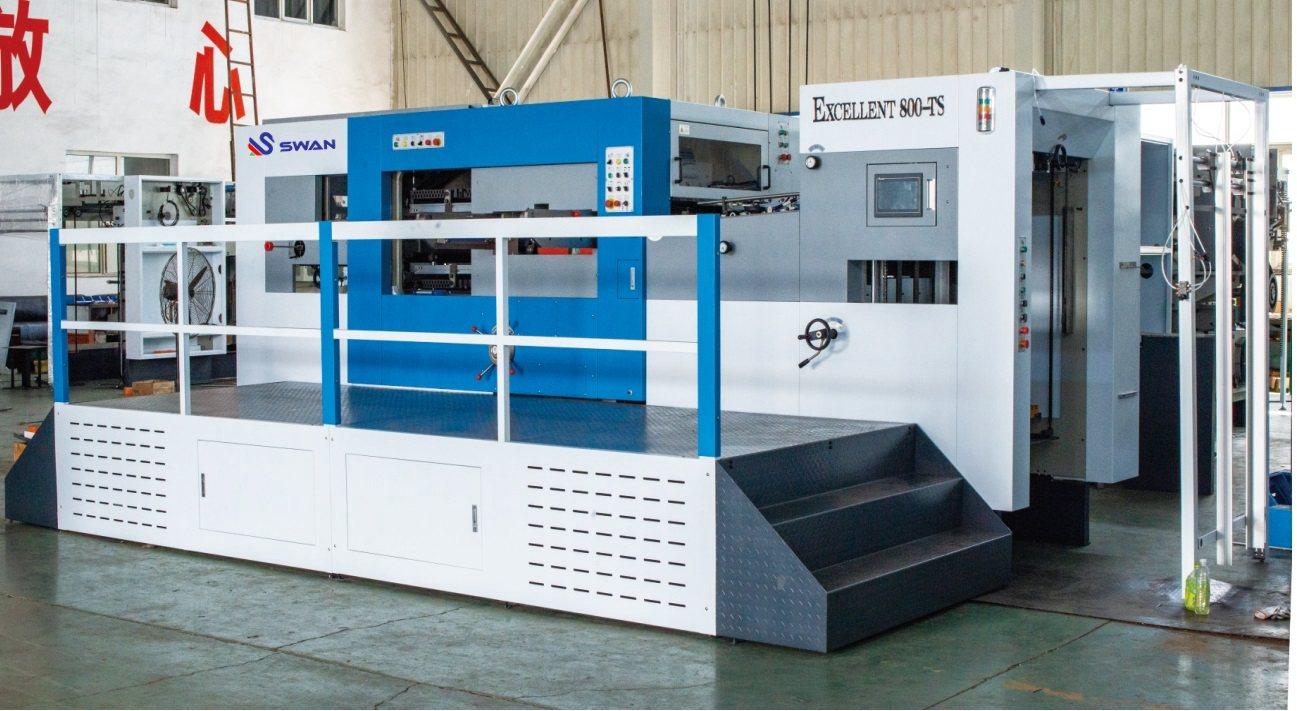

EXCELLENT800TS AUTOMATIC DIE CUTTING AND STRIPPIING MACHINE

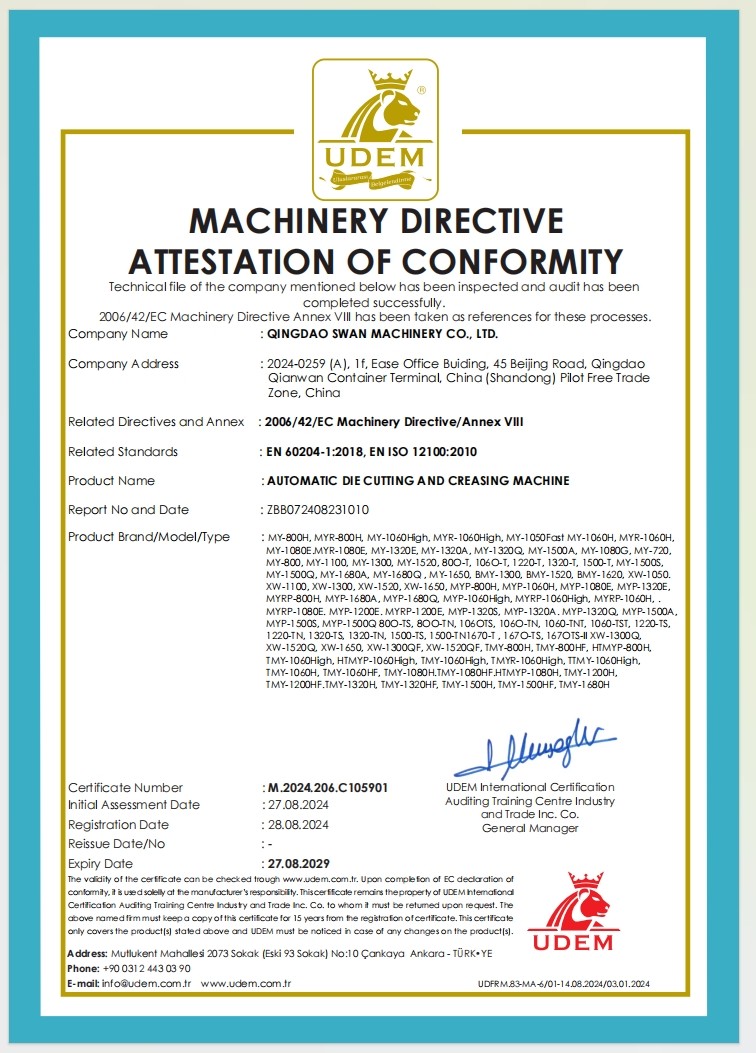

CE Certificate
- Machine specification details
Max sheet Size | 810x620mm |
Min sheet Size | 380x250mm |
Max Die cutting Size | 800x610mm |
Paper thickness | Cardboard 0.1-2.0mm Cardboard 80g/㎡-2000g/㎡ Corrugated Board≤4mm |
Paper feeding height | 1600mm( with wooden bracket) |
Paper delivering height | 1350mm(with wooden bracket) |
Die cutting precise | ≤±0.10mm |
Gripper Margin | 7-17mm |
Max speed | 8500s/h |
Dimension(length*wide*height) | 5130*4052*2267mm |
Total Weight | About 16500KG |
Power | 18kw |
Main motor power | 11kw |
pressure | 300T |
- Machine Details & Configuration/parts Information

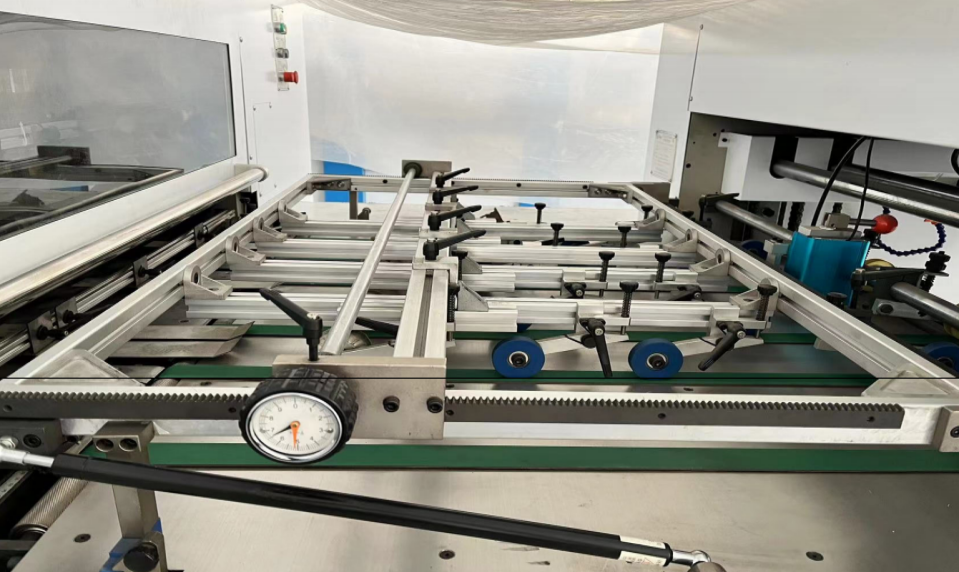

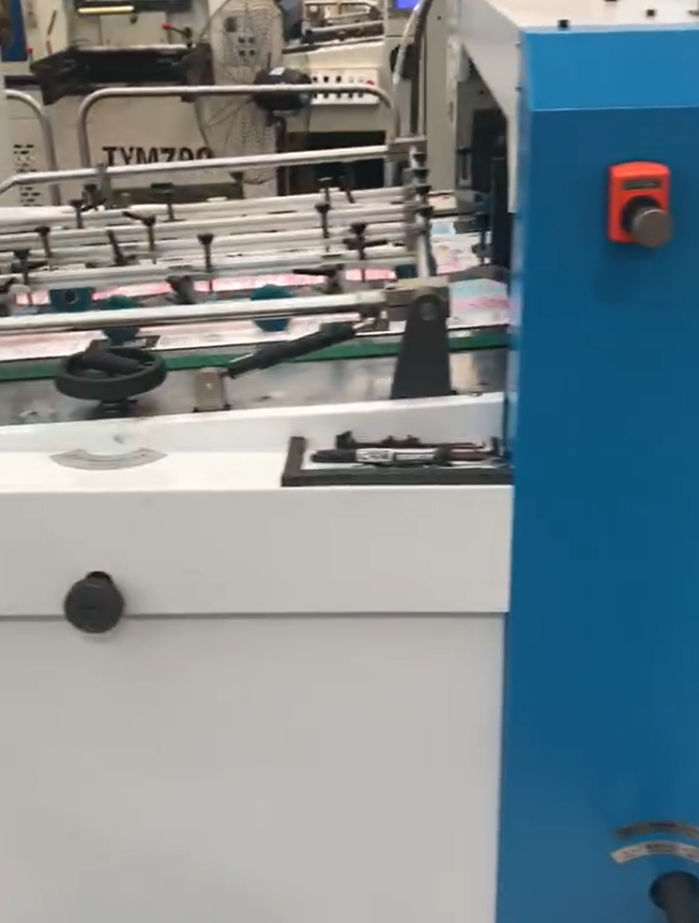

a) High speed delivering part
German technology precise feeder, cardboard and corrugated paper .Four suctions and sending can adjust angle and height according to paper deformation, ensure high-speed stability of paperboard and corrugated paper
● Advanced push and pull side gauge, adopts end face and device, litter wear, high stability, accurate paper position, push and pull functions are easy to switch
● Feeding table fine-turning device, can adjust at any time according to the paper
●Electro-mechanical double sheet detector
● Main and second feeding can be changed without stopping machine, and equipped a pre-code device
●German SAMPLA imported feeding Belts
● Two feeder head high anti-collision detection device, provide a strong guarantee for the safety of the paper table
● Unique paper receiving device, suitable for different deformations paper
● Wear-resistant paper wheel and imported paper belt make fish scale paper more accurately and quickly
● Dual-purpose paper table. paper can be installed by manual or forklift
● Paper time fine tuning device, ensure that the paper is located in the front gague accurately
● The machine realizes main and second feedings switched automatically, without stopping machine, improve working efficiency
● Equipped 1 set of paper rod, 2 sets of paper board
● 1 set of pre-code device
● Main and second feeding can be switched without stopping machine, and equipped a pre-code device
● When a failure occurs during delivering paper, separate feeder away from main machine through pneumatic clutch and stop running, main machine running normally, improve the service life. Reduce waste . This feature makes proofreading easier
b)Main machine parts
●Pressure part is high strength ductile iron QT500-7. special process casting
●High strength, never deform
●The crankshaft is Japan imported advanced alloy steel, through special
process
●German SEW manufacturing super abrasion worm , worm gear.
●Accurate pressure regulating system, easy to adjust under the condition
of ,machine running
●Four elbow linkage design(Rocker shaft ①70*240),large pressure litter wear .
●Variable lateral positioning design, make each row of grippers in one
positioning line
●Gripper positioning compensation device, ensure the stability of the die cutting precision
●Adjustable front and back positioning system, accurate positioning and
easy adjustment
●Moving plate scissor cutting, make the pressure is uniform and high.
●German imported torsion limits protector, avoid any damage to the machine
●Convenient knife template turn-over device
●Power supply lubrication system, main chain microcomputer control automatic intermittent lubrication.
●Italy kelunbo high precision 240 intermittent mechanism make five rows of grippers to run smoothly, accurate precision and low noise
●Italy OMPI imported pneumatic clutch device
●Japan SMC high speed rotary connector
●German IWIS gripper chain, strength increase about 45% , long using life.
●Pneumatic lock plate device
●5 set of high strength titanium-aluminium alloy grippers
●Attached 1 set of gripper, 1 pcs of sheet plate, 1 set of plate frame, 1 set
of hand wrench.

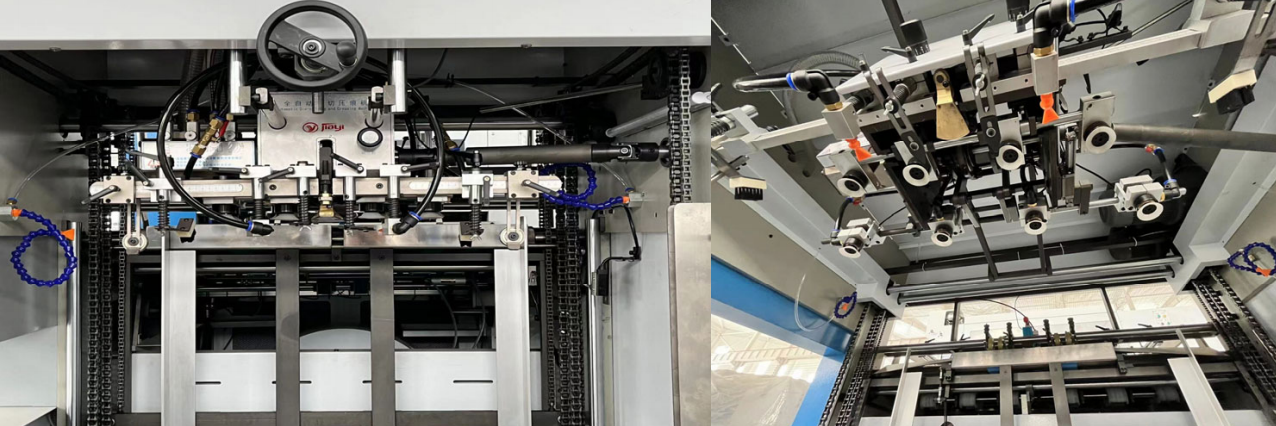

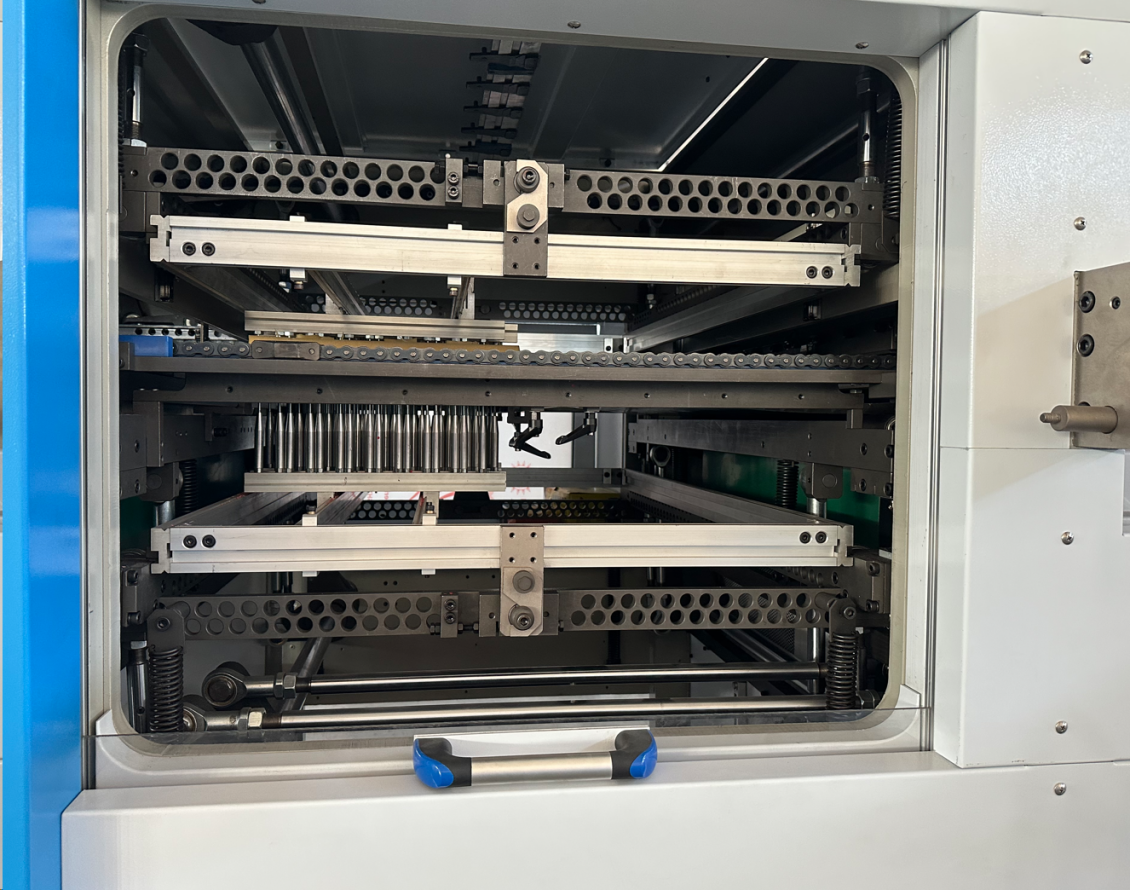

●Triple stripping device, harmony and precise and powerful, can remove
all kinds of special-shaped waste effectively.
●Double-layer stripping up and down mould can be installed and
removed quickly, adjust stripping tools.
●It is convenient to adjust the middle stripping mould
●The upper frame adopts pneumatics control lifting device
●Standard punch needle and elastic rod, combined into “rush-roll” perfect action. Ensure accurate positioning, increase production efficiency.
●Clear waste can be achieved through up and down stripping and also can clear by stripping plate.
●Stripping frame adopts aerial aluminum alloy, light weight, high strength , never deformation
●Stripping frame guide way adopts TaiWan high strength linear guide
way, running smoothly and accurately
●Up and down stripping frame can achieve horizontal fine tuning, convenient for version.
c)Delivering unit
●Automatic paper device, ensure the paper in order
●Equipped electric automatic delivering, it is safe and convenient to deliver paper without stopping machine
●Main chain protection device
●Anti-back device
●Through the photoelectric detection switch, control delivery pile lifting and ultra-high paper
●Equipped air blowing device, ensure paper neatly
●Delivering brush speed reducer devices is easy to adjust
●The sampling device can check the quality of the working parts at any time , reduce the waste
d).Electricity control part
●The machine can realize man-machine conversation through touch screen, the operator can easily eliminate all kinds of faults in mechanical operation according to the touch screen showed, and read the various technical data of the machine, the whole machine is controlled by PLC for the operation and failure of the machine , all doors and windows have a safety alarm system to ensure personal safety
●The main motor adopts German Siemens large power low energy consumption
●Main and vice feeding motor and delivery motor are from Taiwan CPG
●Lubrication pump are from Taiwan WLP
●Adopt advanced PLC and LCD, monitor whole machine running real time
●Main electric parts are all from international well known brands
Packing and Shipment
