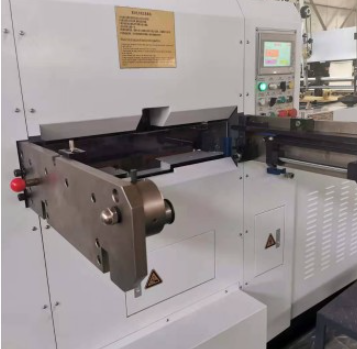

MY-800H Automatic Die-cutting & Creasing Machine

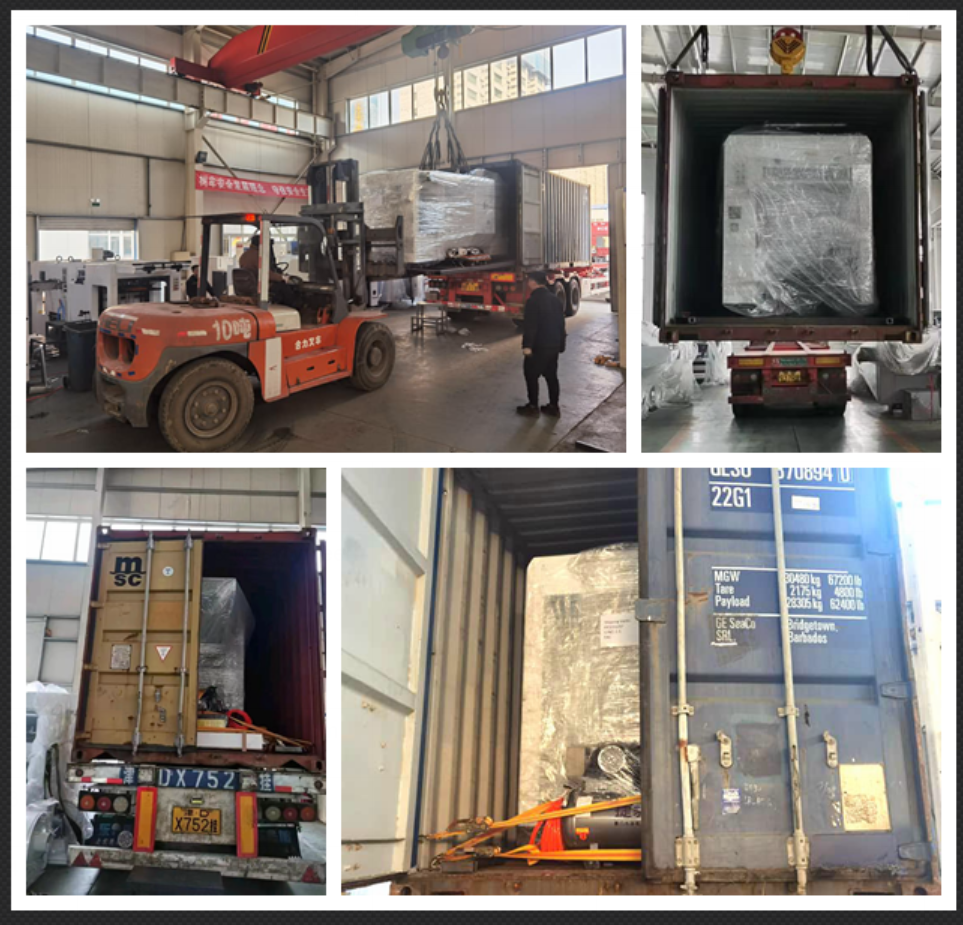

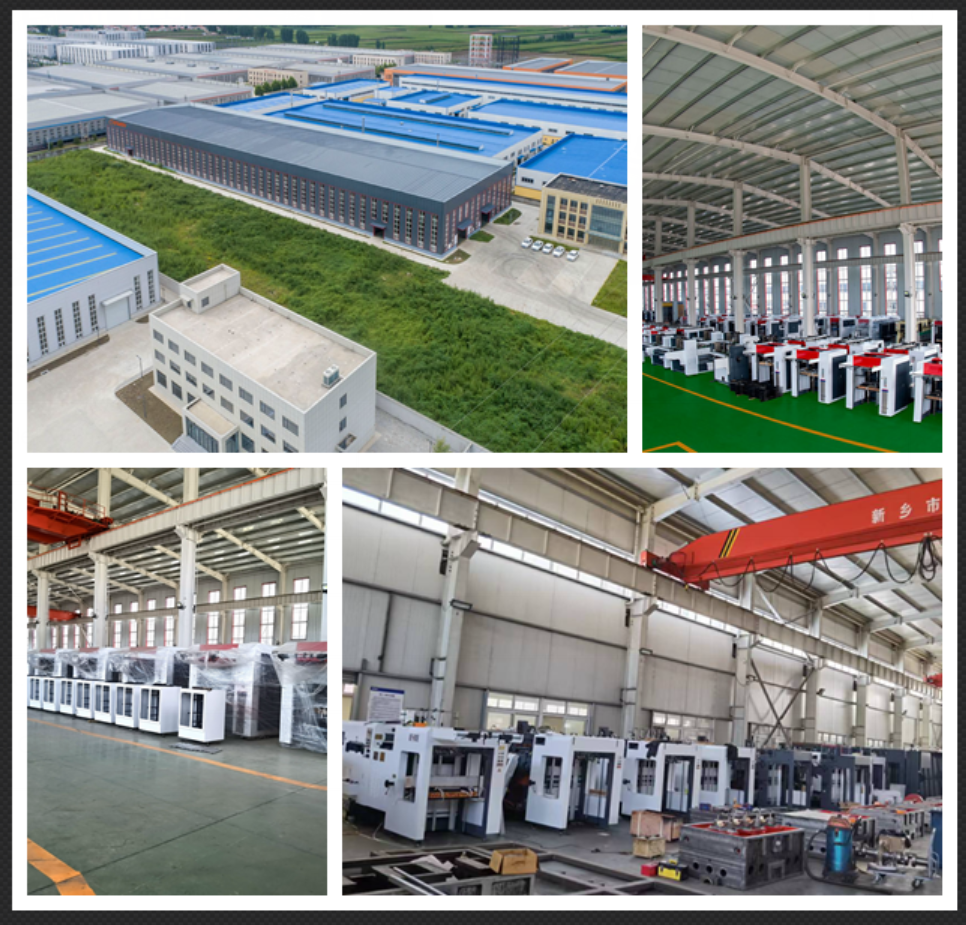

Workshop & shipment

1. Machine specification details

1. Descriptions of the entire product

Automatic die-cutting & creasing machine is the key device for the production of cartons, paper boxes and high standard paper products, etc. It is especially applicable to the automatic die-cutting and stripping of complicated paper boxes and cigarette cases to rationalize the production of paper boxes. This machine is integrally assembled, transported and mounted, it can be put into operated in one day, and thus the cost is reduced. The precise assembly and high configuration make it better than Taiwan machines and competitive with Japan machines.

3.1 Paper Feeding Unit

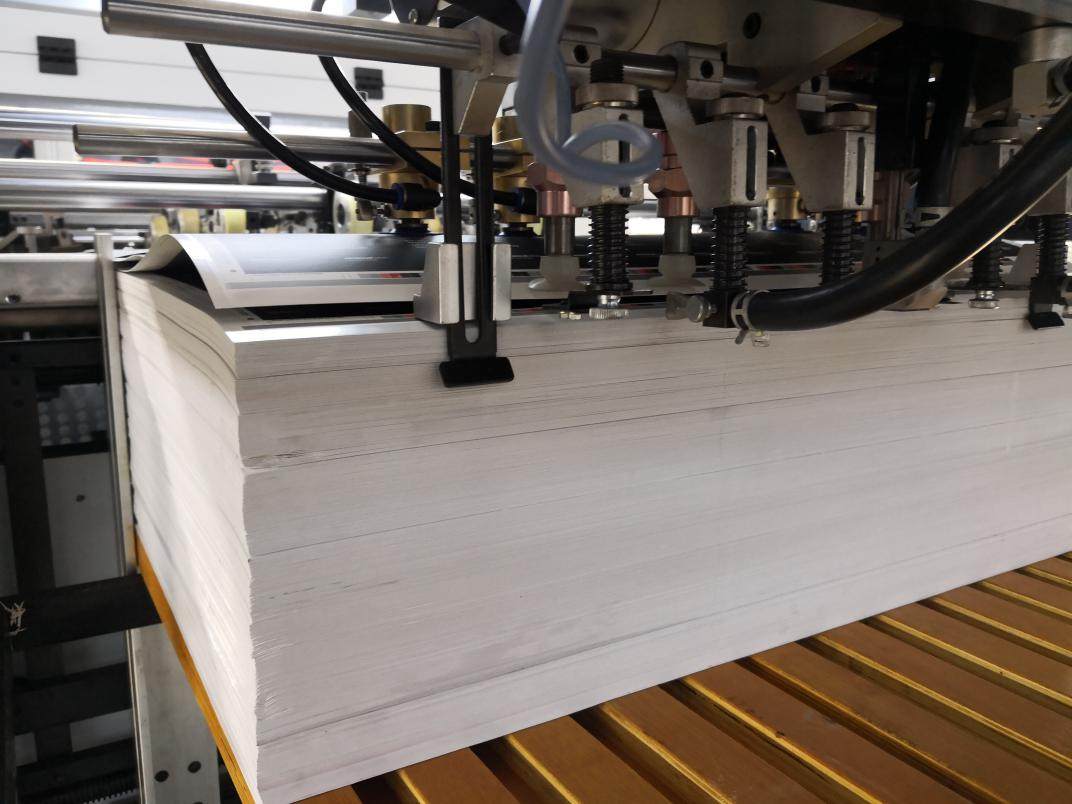

1. The enlarged paper feeding head (Feeder head) has 9 suction nozzles applicable for paper in different thicknesses and 5 paper feeding nozzles which can be independently adjusted for parallel paper feeding. It also has 4 paper lifting nozzles which can move up and down in a large stroke especially applicable for small corrugated paper. The large power wind pump provides a high suction force. It can be conveniently adjusted; paper can be divided reliable, and it runs fast and stably.
2. By the special secondary paper feeding and preliminary paper stacking, the primary and secondary can be shifted to ensure uninterrupted paper feeding.

3）To improve the working efficiency, paper feeding and collecting are realized by Taiwan Chenggang dual-speed reduction motor which provides a long service life and a high torsional force, and it saves time due to its high lowering speed.

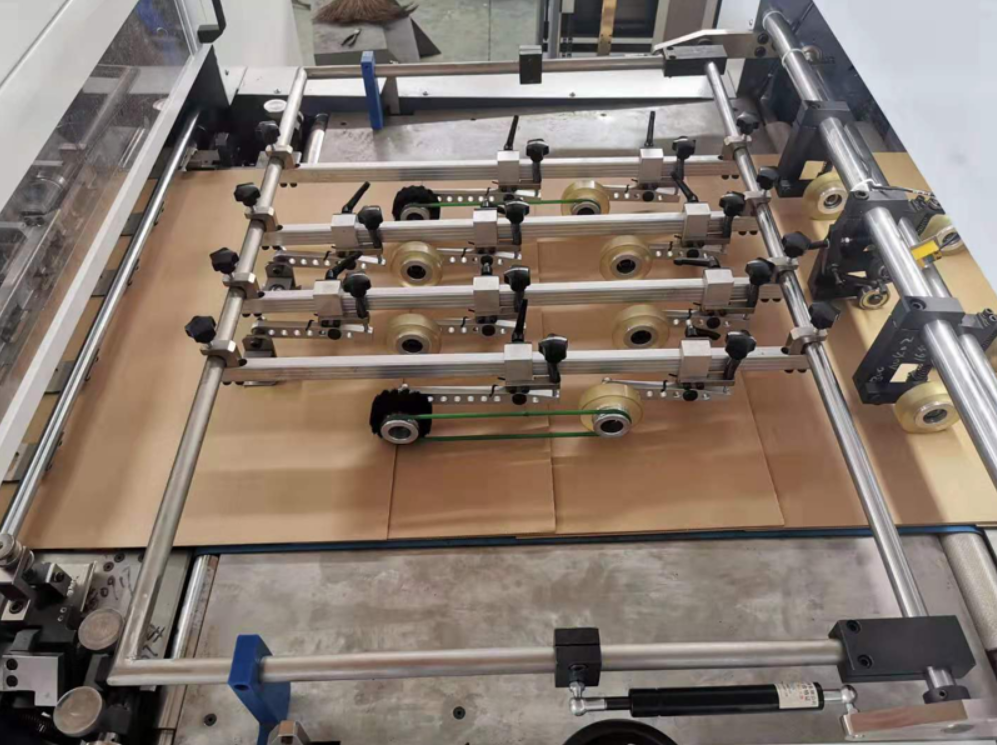

3.2 Paper Conveying Unit

1. The paper conveying part is made of stainless steel plate to prevent rust and provide stable and correct paper conveying.
2. The incline-type paper moving table top is more suitable to high-speed thin paper and location.
3. Paper is positioned by a pushing unit and a pulling unit which can be shifted conveniently for different specifications of paper.

1. It could switch front rise position arriving reduction of speed device, it is benefit if thin paper’s location.

3.3 Main Chain

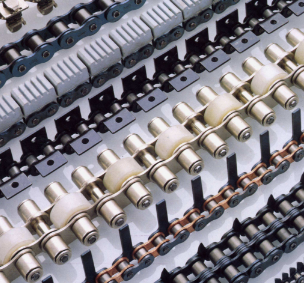

The main chain of toothpicks are all imported original German IWIS high-quality chain, made in Germany.

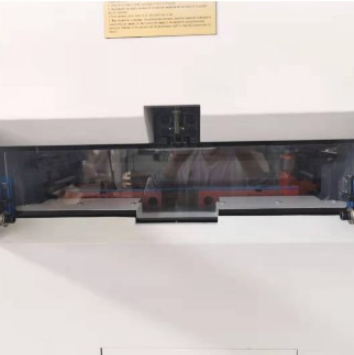

3.4 Die Cutting Unit

1. The cast wall plate is rejected because of its low pulling force but high deformation, and steel wall plate is applied like Japan machines. The pulling force is enlarged, i.e. the pressing force is enlarged, and it becomes firm and endurable without any deformation.
2. This machine is upgraded to a brand high level by the automatic pressure regulation and automatic front scale regulation. The addition of this function upgrades it into a convenient and favorable digital device with high controlling speed.
3. The oil route is forcibly lubricated by a HP oil pump as made in Taiwan to reduce wearing, an oil cooler is added to cool the lubricating oil, and the main chain is lubricated timely to improve the operation efficiency.
4. The novel transmission mechanism provides high speed die-cutting, and the highly precise swing link platform improves the padding speed (almost without padding), as it is known the pressure can be hardly balanced in most of other common machines.
5. The pneumatic plate locking unit can fix the upper frame more firmly and faster. In our die-cutting machine, the front, back, left and right are pneumatically locked simultaneously to realize a high correctness and a high speed. However, common machines are tightened by screws.
6. The paper holding rack chain is imported from Germany, which provides a long service life and a stable die-cutting precision.
7. The Japan intermittent mechanism is the main transmission part of the die-cutting machine, and it improves the die-cutting speed and precision and reduces the device noise, while the speed and precision cannot be realized by any domestic mechanism.
8. The torque limiter is equipped with overload protection. The primary and secondary units can be separated at any overload to ensure the machine can be operated safely. The Italian pneumatic brake and clutch with Japan SMC rotary joint comply with the European standard. They provide fast clutching, high and stable force, long service life and low noise.

3.5 Paper Collecting Unit

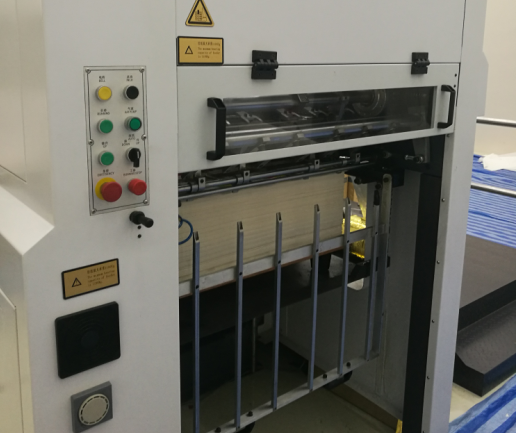

1. Paper can be collected automatically and orderly.
2. The efficiency is improved by an uninterrupted paper collecting grid plate, and when paper is stacked to the specified height, the paper collecting grid plate will be replaced by another plate for uninterrupted paper collecting.
3. By the pneumatic sampling, the die-cut paper can be conveniently inspected at any time.

3.6 Electrical Control Unit

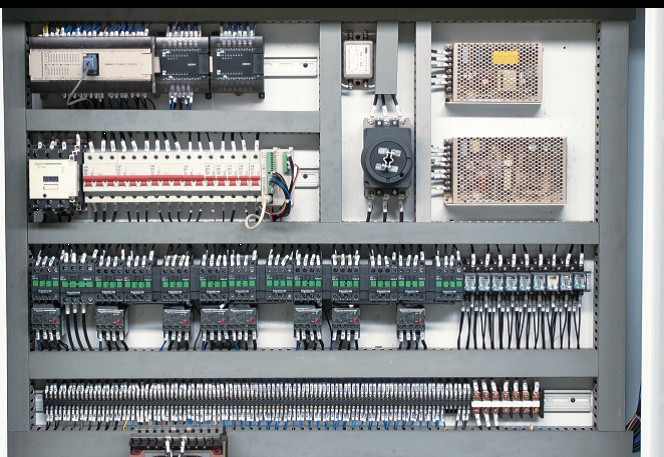

1. The electrical control system is Japan Omron PLC computer automatic control for fully detecting and controlling, and the Japan frequency converter with Taiwan main motor provides high power for paper feeding, paper conveying, die-cutting, and paper collecting.
2. The human-machine interface can display various working conditions, indicate fault positions and give solutions.
3. The machine is equipped with various safety protection units. A visible and audible alarm will be given at any fault, and the machine will be automatically shut down to protect personal and device safety.

4. After sales, training & warranty

Our company has executed an all-the-way tracking management system during the period from product delivery to expiration date. Specific measures are as follows:

4.1 Establishing product technical record management system:

One set of documents for each machine, including acceptance certificate of assembled products, product delivery status, responsible personnel of product installation and commissioning, usage training and qualification certificate, warranty, record of technology and quality status during the guarantee and maintenance period and record of analysis and problem solving process, which can ensure guaranteed operation of each die-cutting machine sold.

4.2 After-sales service guarantee system

1) Equipment installation and commissioning: Our company will send professional engineers responsible for equipment overall installation and commissioning.

2) Technical training: After equipment arrives at your place, we will provide free training to two operators with technical training materials specially compiled. Professional trainers will be responsible for the training. Main training contents are: Structure introduction of the die-cutting machine, structure and adjustment method of paper feeding, structure of the mainframe, adjustment method of the die-cutting pressure, structure and adjustment method of paper collection, installation of die-cutting plate and plate placing method, usage and attentions of various operating switches, daily maintenance and other courses. After the training is completed, assessment of theory and practical operation will be given to operators to see whether they can operate machine skillfully and have understood principle of mechanical properties. Certificate will be given to operators who can carry out routine operations and maintenance. This certificate makes final decision on whether operators can become trainers in order to ensure the normal operation of machine later.

3) One year of free repair guarantee, and one years of warranty, provided the spare parts during guarantee free of charge, and lifetime quality assurance. From the day of your purchase, our company will provide you with free commissioning, maintenance and parts replacement service within one year, but we will charge cost of main parts if the accidents are caused by improper operation instead of mechanical quality. After guarantee, we will provide technical support for all faults occurred in your machine and charge for repair service, including fault repair and original parts replacement.

5. TERMS & PRICING

Model：MY-800H Total Amount：

Container： 20’GPx1

Remark： customer to prepare the make-ready material of foil job, in order to help our technicians training smoothly.

Validity：30 days after the date
